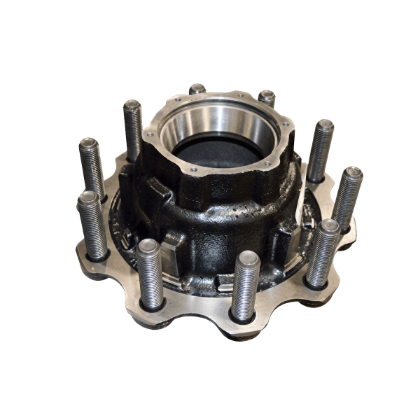

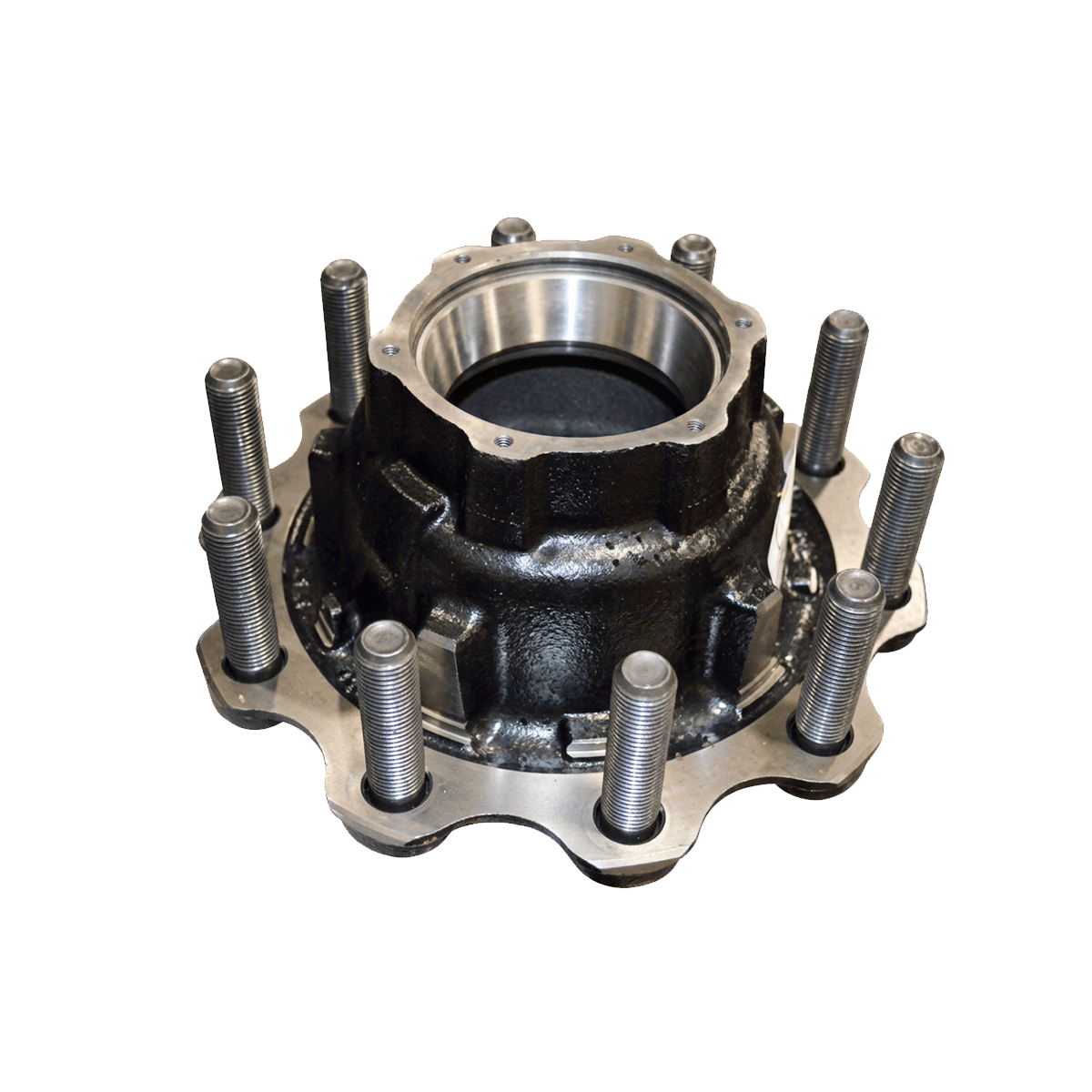

OUTBOARD HUB ASSY W/STANDARD STUDS

HUB, 10 STUD, STEEL, 11.25" BOLT CIRCLE, OUTBOARD, STANDARD STUDS
SKU: 20231-3T
$436.50
20231--3T - Webb cast trailer hub, 10-stud, 11.25" (285.75mm) bolt circle, flange nut mount, M22x1.5 serrated studs. Uses outboard drum, direct-machined ABS ready. Bearings: HM218210/HM218248 inner, HM212011/HM212049 outer. Durable cast construction for heavy-duty trailer axles.
20231--3T - Webb cast trailer hub, 10-stud, 11.25" (285.75mm) bolt circle, flange nut mount, M22x1.5 serrated studs. Uses outboard drum, direct-machined ABS ready. Bearings: HM218210/HM218248 inner, HM212011/HM212049 outer. Durable cast construction for heavy-duty trailer axles.
Products specifications
Component Dimensions
Bolt Circle Diameter 11.25 IN
Material & Finish
Material Cast Iron
Counts & Quantities
Hole Number 10
Mounting & Position
Mount Type Outboard, Bolt-On
Style & Type
Style Hub Piloted, TN
Products specifications
Component Dimensions
Bolt Circle Diameter 11.25 IN
Material & Finish
Material Cast Iron
Counts & Quantities
Hole Number 10
Mounting & Position
Mount Type Outboard, Bolt-On
Style & Type
Style Hub Piloted, TN
